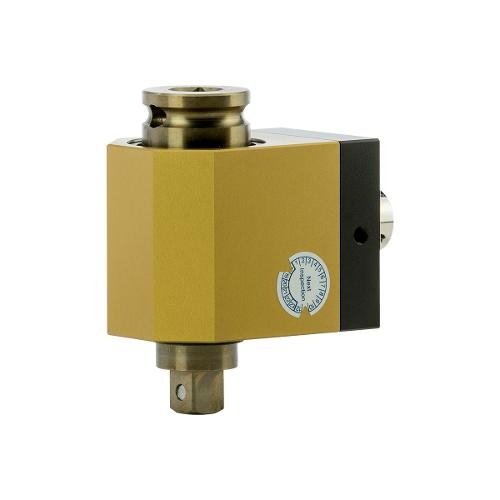

Mountz 170208 (RTSX50F) - Rotary Transducer (5-50 lbf.ft)

Manufacturer: Mountz
Category: Torque Testers & Analyzers
Model # 170208 (RTSX50F)
Pemro # MTZ-1898

$4,010.00 $ 3,987.85/each

Available to Order

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and an assembly application, you can monitor the torque being applied from the tool to the fastener or bolt.

Use torque sensor with most hand tools, power tools or rotational measurement applications.

Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.

Features ARC II technology, an instant auto-recognition system of the RTSX connected to the PTT or LTT.

Bi-directional.

Specifications
Minimum Torque Range - American: 5
Maximum Torque Range - American: 50
Torque Units - American: lbf.ft
Minimum Torque Range - S.I.: 6.8
Maximum Torque Range - S.I.: 67.8
Torque Units - S.I.: N.m
Input Drive: 3/8 F/Sq
Output Drive: 3/8 M/Sq
Tool Length: 2.9"
Tool Width: 1.5"
Tool Height: 2"
