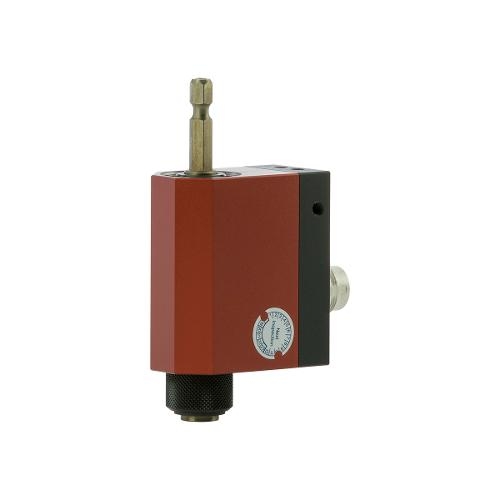

Rotary Torque & Angle Transducer

Manufacturer: Mountz
Category: Torque Testers & Analyzers
Model # 170219 (RTSX200i-HA)
Pemro # MTZ-2126

$6,085.00 $ 6,051.38/each

Available to Order

The Rotary Torque and Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and an assembly application, you can monitor the torque being applied from the tool to the fastener or bolt.

Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.

Angle output: 2-channel quadrature, 360 pulses per rotation.

Bi-directional.

For use with most power tools and rotational measurement applications.

Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT.

Specifications
Minimum Torque Range - American: 20
Maximum Torque Range - American: 200
Torque Units - American: lbf.in
Minimum Torque Range - S.I.: 226
Maximum Torque Range - S.I.: 2260
Torque Units - S.I.: cN.m
Input Drive: 1/4 M/Hex
Output Drive: 1/4 F/Hex
Tool Length: 4"
Tool Width: 1.1"
Tool Height: 2"
