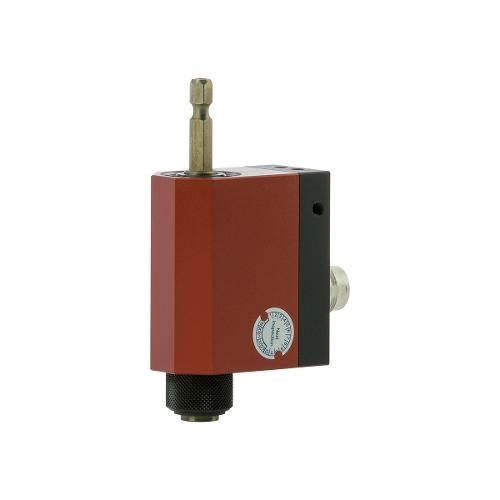

Mountz 170226 (BLRTSX70z-H) - Brushless Rotary Transducer

Mountz 170226 (BLRTSX70z-H)
Add to List

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and an assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.

  • The brushless rotary torque sensor is a compact design & bi-directional.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
  • Bi-directional.
  • Non-Contact signal transfer and maintenance-free.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.


    • Specifications
    Minimum Torque Range - American: 10
    Maximum Torque Range - American: 70
    Torque Units - American: ozf.in
    Minimum Torque Range - S.I.: 7
    Maximum Torque Range - S.I.: 49
    Torque Units - S.I.: cN.m
    Input Drive: 1/4 M/Hex
    Output Drive: 1/4 F/Hex
    Tool Length: 4"
    Tool Width: 1.1"
    Tool Height: 2"
