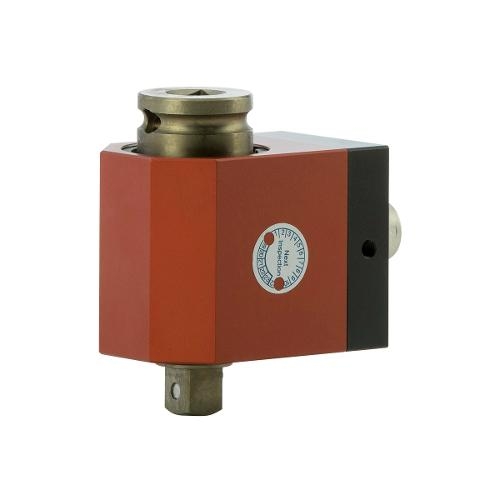

Mountz 170236 (BLRTSX36F) - Brushless Rotary Transducer

Mountz 170236 (BLRTSX36F)
Add to List

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and an assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.

  • The brushless rotary torque sensor is a compact design & bi-directional.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
  • Bi-directional.
  • Non-Contact signal transfer and maintenance-free.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.


    • Specifications
    Minimum Torque Range - American: 4
    Maximum Torque Range - American: 36
    Torque Units - American: lbf.ft
    Minimum Torque Range - S.I.: 5
    Maximum Torque Range - S.I.: 50
    Torque Units - S.I.: N.m
    Input Drive: 3/8 F/Sq
    Output Drive: 3/8 M/Sq
    Tool Length: 2.9"
    Tool Width: 1.5"
    Tool Height: 2.3"
