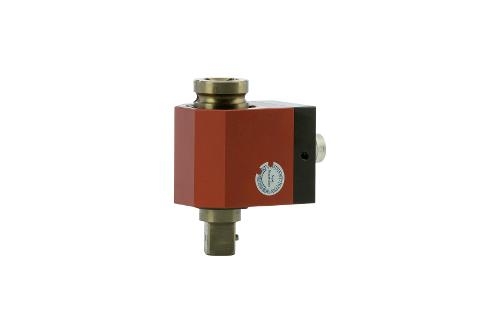

Brushless Rotary Transducer

Manufacturer: Mountz
Category: Torque Testers & Analyzers
Model # 170237 (BLRTSX73F)
Pemro # MTZ-2154

$4,975.00 $ 4,947.51/each

Available to Order

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and an assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.

The brushless rotary torque sensor is a compact design & bi-directional.

The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.

Bi-directional.

Non-Contact signal transfer and maintenance-free.

For use with most power tools, high RPM tools, or rotational measurement applications.

Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.

Specifications
Minimum Torque Range - American: 8
Maximum Torque Range - American: 73
Torque Units - American: lbf.ft
Minimum Torque Range - S.I.: 10
Maximum Torque Range - S.I.: 100
Torque Units - S.I.: N.m
Input Drive: 1/2 F/Sq
Output Drive: 1/2 M/Sq
Tool Length: 3.1"
Tool Width: 1.5"
Tool Height: 2.3"
