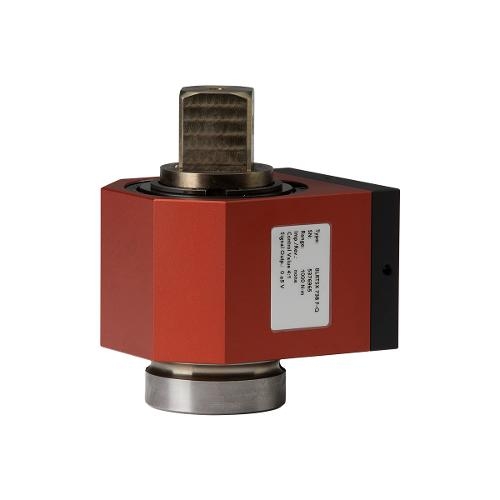

Mountz 170241 (BLRTSX738F) - Brushless Rotary Transducer

Manufacturer: Mountz
Category: Torque Testers & Analyzers
Model # 170241 (BLRTSX738F)
Pemro # MTZ-2329

$6,300.00 $ 6,265.19/each

Available to Order

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and an assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.

The brushless rotary torque sensor is a compact design & bi-directional.

The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.

Bi-directional.

Non-Contact signal transfer and maintenance-free.

For use with most power tools, high RPM tools, or rotational measurement applications.

Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.

Specifications
Minimum Torque Range - American: 74
Maximum Torque Range - American: 738
Torque Units - American: lbf.ft
Minimum Torque Range - S.I.: 100
Maximum Torque Range - S.I.: 1000
Torque Units - S.I.: N.m
Input Drive: 1 F/Sq
Output Drive: 1 M/Sq
Tool Length: 4.4"
Tool Width: 2.8"
Tool Height: 3.5"
