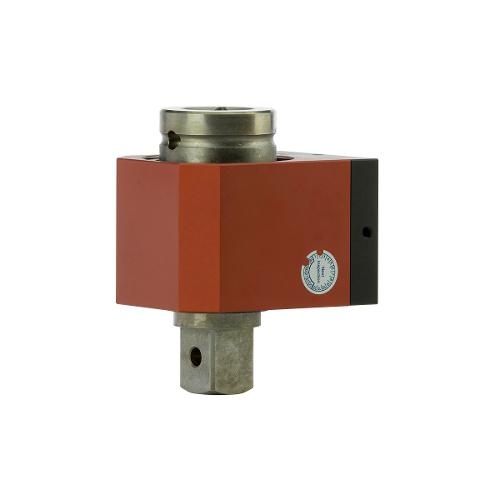

Mountz 170258 (BLRTSX368F-A) - Brushless Rotary Angle Transducer

Manufacturer: Mountz
Category: Torque Testers & Analyzers
Model # 170258 (BLRTSX368F-A)
Pemro # MTZ-3711

$9,795.00 $ 9,740.88/each

Available to Order

The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.

Non-contact signal transfer and maintenance-free.

Angle Output: 2-channel quadrature, 360 pulses per rotation.

Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.

The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.

Compact design & bi-directional.

For use with most power tools, high RPM tools, or rotational measurement applications.

Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT.

Specifications
Minimum Torque Range - American: 37
Maximum Torque Range - American: 368
Torque Units - American: lbf.ft
Minimum Torque Range - S.I.: 50
Maximum Torque Range - S.I.: 500
Torque Units - S.I.: N.m
Input Drive: 3/4 F/Sq
Output Drive: 3/4 M/Sq
Tool Length: 5.3"
Tool Width: 2.3"
Tool Height: 3"
