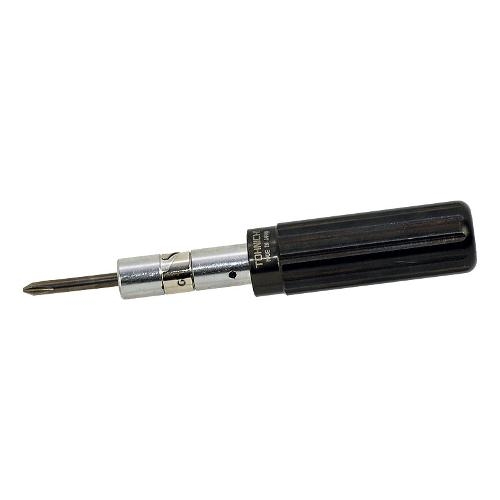

Tohnichi RNTD15CN - Rotary Slip and Preset Torque Screwdriver, 5-15cN.m, 0.5-1.5kgf.cm, 0.5-1.3lbf.in, 1/4" Hex

Tohnichi RNTD15CN
  • Manufacturer: Tohnichi
  • Category: Torque Drivers
  • Model # RNTD15CN
  • Pemro # TON-2759
  • $134.00 $ 132.11/each
  • Available to Order
Add to List

Rotary Slip and Preset Torque Screwdriver, 5-15cN.m, 0.5-1.5kgf.cm, 0.5-1.3lbf.in, Accepts 1/4" Hex Bits (Sold Separately)

• RNTD Preset Type Torque Screwdriver
• Precision Torque Control for Reliable Assembly Work
• The RNTD Preset Torque Screwdriver features a rotary-slip mechanism that prevents over-tightening, ensuring consistent and secure fastening. Ideal for applications requiring a fixed torque setting, such as assembly work.
• Preset Torque Control – No external scale adjustment, eliminating the risk of accidental changes for a secure and reliable setting.
• Slip Mechanism for Over-Tightening Prevention – At the preset torque, the tool “clicks” and ratchets without applying additional force.
• High Accuracy & Durability – ±3% accuracy of the set value with a robust toggle clutch mechanism for enhanced performance.
• Torque Setting Available – Ships without a preset torque value. Requires an adjusting key and tester for calibration. Optional preset torque service available upon request for a nominal fee.
• Versatile Compatibility – Accepts standard 1/4” hex root bits (sold separately).
• Auxiliary Handle (RNTD500CN Only) – Provides added control for high-torque applications.
• International Compliance – Meets ISO 6789 Type II Class E standards, making it suitable for global use, including the EU.
• Counterclockwise Model Available – Reverse tightening option offered upon request.
• Ensure precise and repeatable torque with the RNTD Preset Type Torque Screwdriver—designed for reliability, safety, and efficiency in assembly and manufacturing environments.

Specifications / Accuracy ±3%
S.I. Range (N · m]: 5 ~ 15
Metric Range [kgf · cm]: 0.5 ~ 1.5
American Range [lbf · in]: 0.5 ~ 1.3
Applicable Small Screw: (M1.8)
Applicable Tapping Screw: (M1.4) M1.6
Overall Length [L']: 94
Grip [D1]: 19.5
Body Color: Black
Body [D4]: 11
Body [L1]: 24
Body [L2]: 59
Weight [kg]: 0.07
