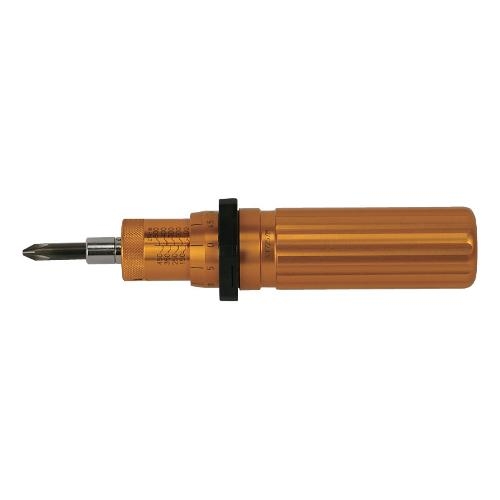

Tohnichi RTD500CN - Rotary Slip and Adjustable Torque Driver, 100-500, 5cN.m, 1/4" Hex

• Manufacturer: Tohnichi
• Category: Torque Drivers
• Model # RTD500CN
• Pemro # TON-2330
$262.00 $ 227.83/each
Available to Order

Rotary Slip and Adjustable Torque Driver, 100-500, 5cN.m, 1/4" Hex
Includes Factory Certificate of Calibration

• RTD Adjustable Type Torque Screwdriver
• Adjustable torque screwdriver with rotary slip mechanism is ideal for various jobs allowing easy change of torque setting.
• Adjustable type features an external scale that can be set simply by twisting the body to line up with desired torque setting and then secured in place with a black lock ring.
• Hexagonal shaped locker prevents drivers from rolling when set down on flat surfaces between uses.
• Rotary slip mechanism prevents over torque.
• User will sense and hear “click” at set torque and should then stop turning, if the user continues, the rotary slip mechanism will ratchet the driver without applying additional torque.
• Features Tohnichi’s toggle clutch torque detection mechanism for enhanced durability.
• Accepts standard 1/4? hex root shaped bits (sold separately)
• Includes Certificate of Calibration from Tohnichi factory (Japan)
• ISO 17025 Accredited Certificates are available for an additional fee.
• Models available in SI, Metric, and American units.
• Select model according to units of measure and required torque range.
• Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class D.
• Counterclockwise tightening model available upon request

Specifications / Accuracy ±3%
S.I. Range (cN · m]: 100~500
S.I. Graduation: 5
Metric Range [kgf · cm]: 10~50
Metric Graduation: 0.5
Applicable Small Screw: M5, M6
Applicable Tapping Screw: (M4.5)
Overall Length [L']: 155
Grip [D1]: 33
Body [D2]: 25
Body [D3]: 11
Body [L1]: 24
Body [L2]: 129~141
Locker [d]: 45
Locker [W]: 41
Weight [kg]: 0.32
