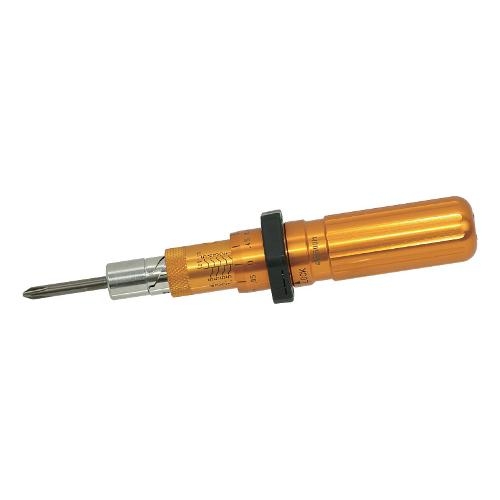

Rotary Slip and Adjustable Torque Driver, 1-5, 0.05lbf.in, 1/4" Hex

Manufacturer: Tohnichi
Category: Torque Drivers
Model # RTD5I
Pemro # TON-4725

$196.00 $ 170.43/each

Available to Order

Rotary Slip and Adjustable Torque Driver, 1-5, 0.05lbf.in, 1/4" Hex
Includes Factory Certificate of Calibration

RTD Adjustable Type Torque Screwdriver
Adjustable torque screwdriver with rotary slip mechanism is ideal for various jobs allowing easy change of torque setting.
Adjustable type features an external scale that can be set simply by twisting the body to line up with desired torque setting and then secured in place with a black lock ring.
Hexagonal shaped locker prevents drivers from rolling when set down on flat surfaces between uses.
Rotary slip mechanism prevents over torque.
User will sense and hear “click” at set torque and should then stop turning, if the user continues, the rotary slip mechanism will ratchet the driver without applying additional torque.
Features Tohnichi’s toggle clutch torque detection mechanism for enhanced durability.
Accepts standard 1/4? hex root shaped bits (sold separately)
Includes Certificate of Calibration from Tohnichi factory (Japan)
ISO 17025 Accredited Certificates are available for an additional fee.
Models available in SI, Metric, and American units.
Select model according to units of measure and required torque range.
Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class D.
Counterclockwise tightening model available upon request

Specifications / Accuracy ±3%
American Range [lbf·in]: 1~5
American Graduation: 0.05
Applicable Small Screw: M2.5, M3
Applicable Tapping Screw: (M2.2) M2.5
Overall Length [L']: 109
Grip [D1]: 19.5
Body [D2]: 14.8
Body [D3]: 11
Body [L1]: 24
Body [L2]: 81.1~90.1
Locker [d]: 29
Locker [W]: 26.5
Weight [kg]: 0.08
