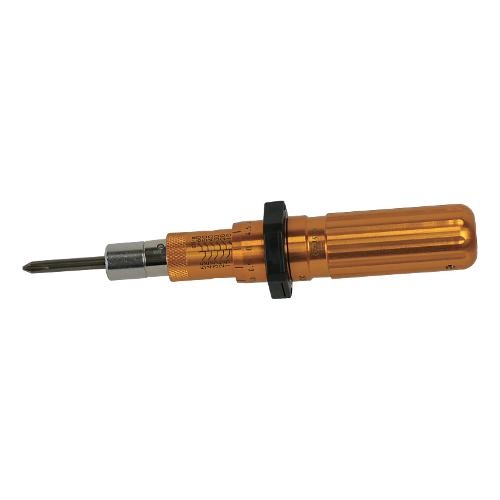

Rotary Slip and Adjustable Torque Driver, 10-60, 0.5cN.m, 1/4" Hex

• Manufacturer: Tohnichi
• Category: Torque Drivers
• Model # RTD60CN
• Pemro # TON-2495
$196.00 $ 180.53/each
Available to Order

Rotary Slip and Adjustable Torque Driver, 10-60, 0.5cN.m, 1/4" Hex
Includes Factory Certificate of Calibration

• RTD Adjustable Type Torque Screwdriver
• Adjustable torque screwdriver with rotary slip mechanism is ideal for various jobs allowing easy change of torque setting.
• Adjustable type features an external scale that can be set simply by twisting the body to line up with desired torque setting and then secured in place with a black lock ring.
• Hexagonal shaped locker prevents drivers from rolling when set down on flat surfaces between uses.
• Rotary slip mechanism prevents over torque.
• User will sense and hear “click” at set torque and should then stop turning, if the user continues, the rotary slip mechanism will ratchet the driver without applying additional torque.
• Features Tohnichi’s toggle clutch torque detection mechanism for enhanced durability.
• Accepts standard 1/4? hex root shaped bits (sold separately)
• Includes Certificate of Calibration from Tohnichi factory (Japan)
• ISO 17025 Accredited Certificates are available for an additional fee.
• Models available in SI, Metric, and American units.
• Select model according to units of measure and required torque range.
• Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type II Class D.
• Counterclockwise tightening model available upon request

Specifications / Accuracy ±3%
S.I. Range (cN · m]: 10~60
S.I. Graduation: 0.5
Metric Range [kgf · cm]: 1~6
Metric Graduation: 0.05
Applicable Small Screw: M2.5, M3
Applicable Tapping Screw: (M2.2) M2.5
Overall Length [L']: 109
Grip [D1]: 19.5
Body [D2]: 14.8
Body [D3]: 11
Body [L1]: 24
Body [L2]: 81.1~90.1
Locker [d]: 29
Locker [W]: 26.5
Weight [kg]: 0.08
