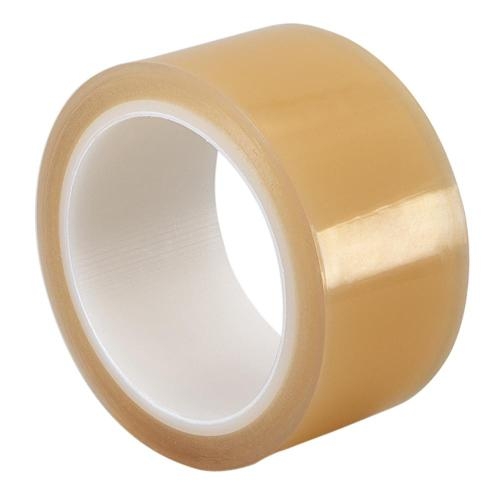

TPC Tapes Ctape-2-36 (2-36-CTAPE) - 2" x 36yds FEP Film Tape

• Manufacturer: TPC Tapes
• Category: Special Purpose
• Model # Ctape-2-36 (2-36-CTAPE)
• Pemro # TPC-1667
$ 257.68/each
Available to Order

2" x 36yds FEP Film, 3.5 mil, Silicone, CTAPE

Manufactured from clear FEP (fluorinated ethylene propylene) film with pressure-sensitive, high-temerature silicone adhesive.

Features:
• Used for coil and transformer insulation
• Due to transparency, tape is useful for "see thru" identification on wire harnesses
• Very durable and versatile
• FEP backing offers excellent high temperature resistance and offer the highest electrical strength in volts per mil

Specifications:
Backing: Film-FEP
Adhesive Type: Silicone
Total Thickness (mil): 3.5 mil
Backing Thickness (mil): 2.0 mil
Adhesive Thickness (mil): 1.5 mil
Adhesion to Steel (oz/in): 20 oz/in
Tensile Strength (lbs/in): 8.0 lb/in
Operating Temperature (°F): -100° to 400°F
Color: Clear
Dielectric Strength (volts): 9000
Dielectric Electrolytic Corr. : 1.0
Elongation at break (%): 275%
